Plate Lifting Clamps

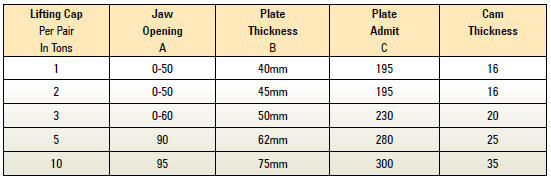

Horizontal Safety Plate Clamps are designed for flat or horizontal lifting and are generally used in pairs.
The gripping cam of hardened steel, prevents the clamp from slipping on the load.
The cams are available either with serrated teeth or smooth faced, as requested.

All dimensions are in mm.
Above dimensions are subject to alterations for the sake of improvement.

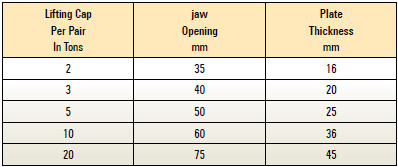

HORIZONTAL PIPE LIFTING CLAMPS ARE SPECIALLY DESIGNED WITH TEFLON FITTED JAW FOR PIPE
PROTECTION WHILE LIFTING.

All dimensions are in mm.
Above dimensions are subject to alterations for the sake of improvement.

Dimension x can be altered as per customer’s requirement

Above dimensions are subject to alterations for the sake of improvement.
